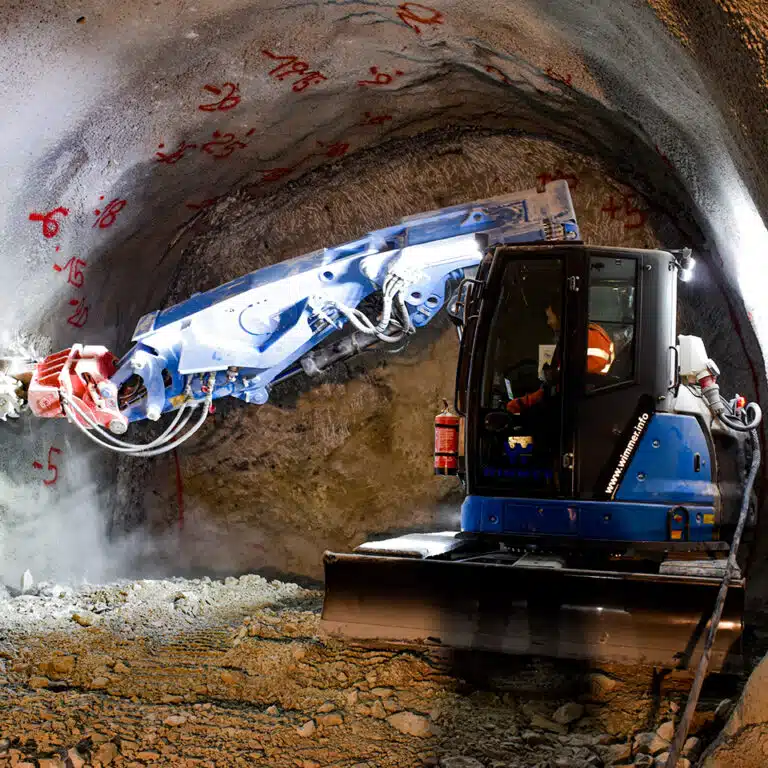

Tunnel excavator with E-motor
The E-motor enables emission-free work in the tunnel and at the same time a higher efficiency than the Blue Badger.

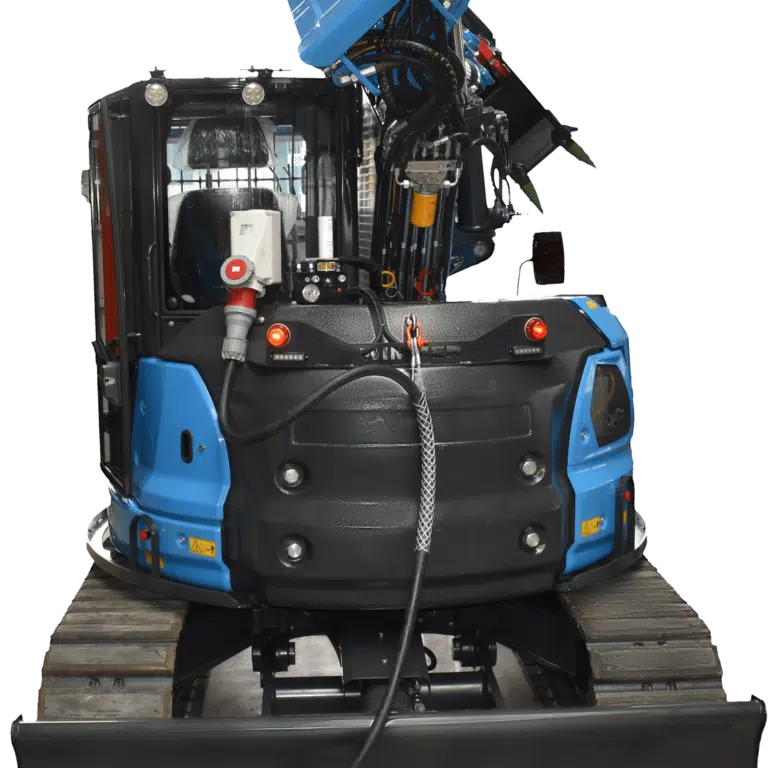

The new excavator is driven by an electric motor that delivers up to 50 kW of power. This enables the eBadger to achieve a higher hydraulic output due to a 15% higher efficiency than the Blue Badger. During the work process, the eBadger is connected to the power grid. The electric motor drives both the hydraulics for moving the machine and the attachments. Another major advantage is the completely emission-free operation.
Technical data
- Total weight 14,5 to
- Engine power: 50 kW
- Min. tunnel height: 3.5 m
- Min. tunnel width: 2.5 m
- Min. tunnel width for 180° rotation: 4.2 m
- Electrical system: 12/24/650VDC
- Supply voltage: 400VAC/50Hz
- Current: 125 A (max)

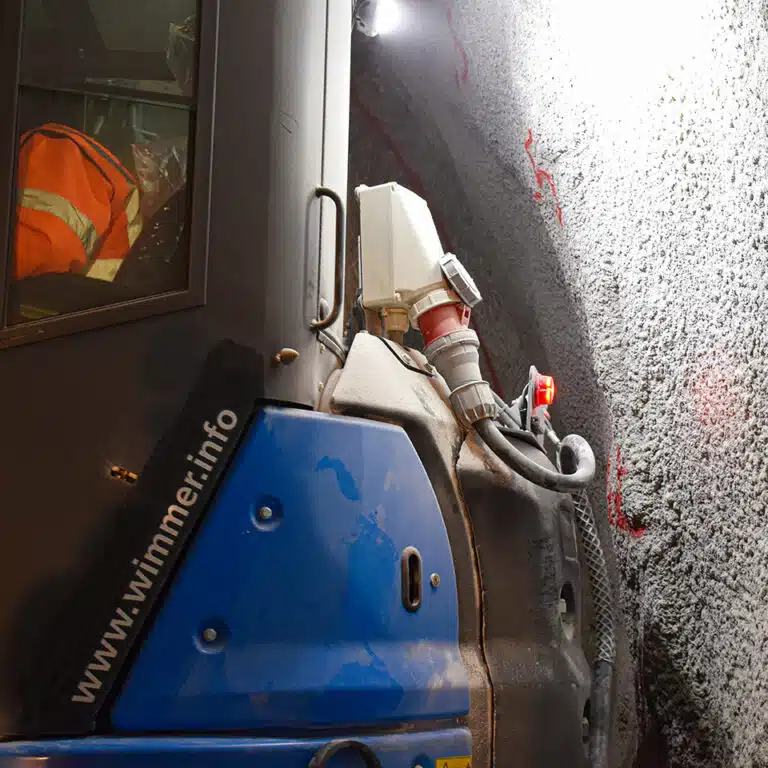

- Connection: CEE
Dredging technology
- Special tunnel swivel arm with 2 x 45 ° swivel bearing
- Optimal lateral routing of hoses and lines
- Wimmer quick coupler for an easier tool change
- Special arrangement of the cylinders for better protection of the components
- Kinetics from the boom optimized for tunnel driving
- Central lubrication

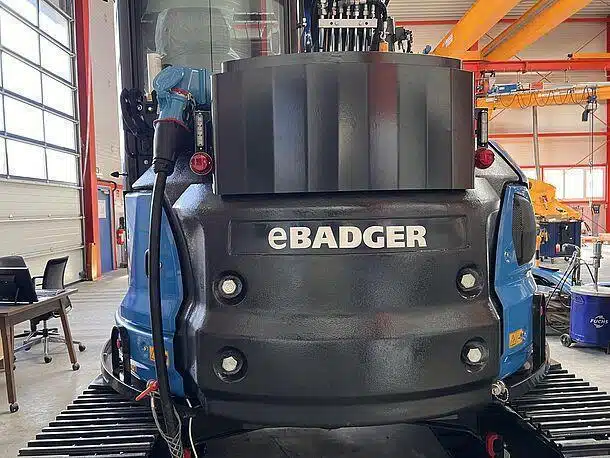

Battery pack
- Cell chemistry: nickel-manganese-cobalt based on lithium-ions
- Nominal capacity: 75 Ah
- Nominal energy content: 52 kWh
- Rated voltage: 691.2 V
- Supply voltage LV: 24 V DC
- Weight: 350 kg
Attachment tools
- Cell chemistry: nickel-manganese-cobalt based on lithium-ions
- Nominal capacity: 75 Ah
- Nominal energy content: 52 kWh
- Rated voltage: 691.2 V
- Supply voltage LV: 24 V DC
- Weight: 350 kg
