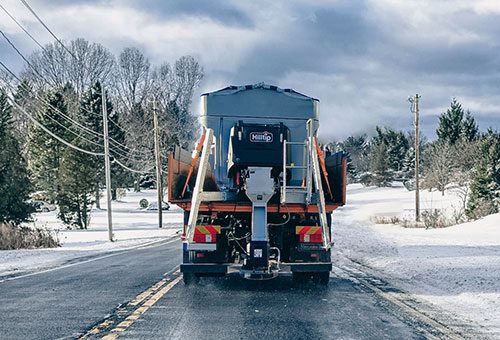

HillTip IceStriker™ Truck-mounted spreader

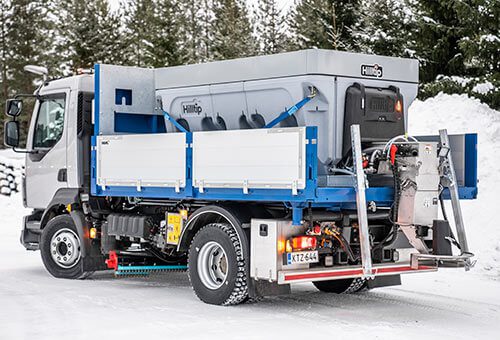

HillTip IceStriker™ Truck-mounted spreader - Image 2

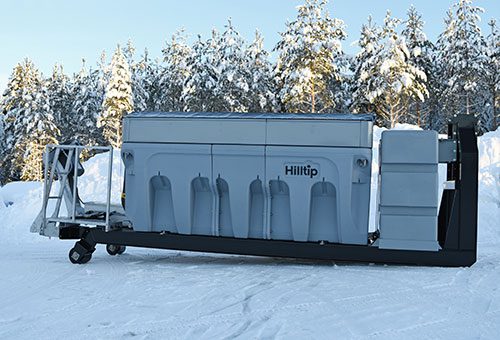

HillTip IceStriker™ Truck-mounted spreader - Image 3

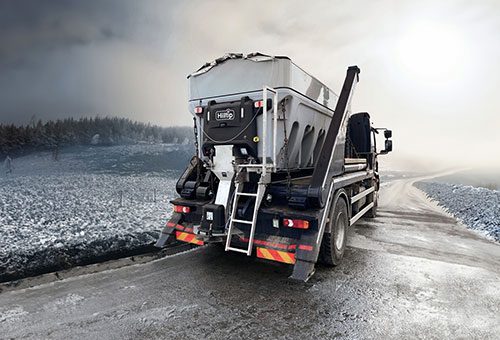

HillTip IceStriker™ Truck-mounted spreader - Image 4

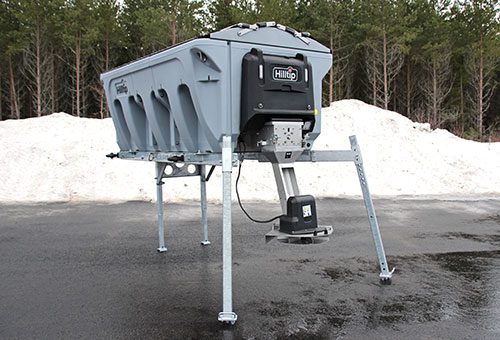

HillTip IceStriker™ Truck-mounted spreader - Image 5

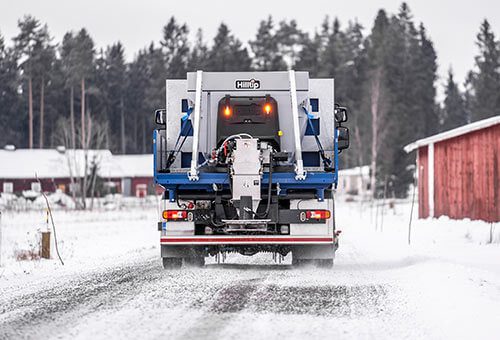

HillTip IceStriker™ Truck-mounted spreader - Image 6

HillTip IceStriker™ Truck-mounted spreader

Solutions That Work

IceStriker™ 3000-7000 AM/CM modular combi spreader for 7.5-26 ton trucks.

Categories: Core Products, Sand & Salt Spreaders Tag: spreaders

TRUCK-MOUNTED SPREADER DESIGN

The Hilltip IceStriker™ 3000-7000 is a 12V/24V electric sand and salt spreader for trucks. It’s designed for 7.5-26 ton vehicles, with the choice of auger or conveyor chain as a feed mechanism. The lightweight, durable modular poly hopper and mounted parts in stainless steel provide long-lasting protection against corrosion.

This unique truck-mounted sand and salt spreader with the advanced HTrack™ tracking and control system as standard feature helps you save money and reduce environmental impacts while achieving superior de-icing results.

Optionally STRIKESMART™ -PLUS and TEMPSTRIKER™ features weather forecast information and current air, road and dew point temperature information. The control system automatically suggests optimum spread rate for the driver, that will ensure world class ice control performance and road safety.

LIQUID DE-ICING FUNCTIONS AND BRINE SPRAYERS FOR TRUCKS

The IceStriker™ truck-mounted spreader is versatile, and it can easily be transformed into a complete liquid de-icing spreader or into a pre-wet combi salt spreader. Its integrated double-walled tanks can store up to 1,400 litres of liquid. This salt and sand spreader for trucks can be equipped with a 2-metre spray bar and a hose reel with a handheld spray nozzle. The IceStriker™ 2,600-7,000 litre spreaders can be equipped with additional liquid tanks ( 1000 l/tank) for added capacity.

SPREADER SPECIFICATIONS	MODEL 3000 AM/CM 4000 AM/CM 5000 CM 6000 CM 7000 CM Total length (including spinner) 360 cm 360 cm 410 cm 410 cm 460 cm Minimum truck bed length 265 cm 265 cm 325 cm 325 cm 385 cm Maximum external width (with tarp mounted) 170 cm 170 cm 170 cm 170 cm 170 cm Total height of the hopper from the loading surface of the carrying vehicle 130 cm 155 cm 155 cm 165 cm 155 cm Capacity, struck 2600 l 3200 l 4200 l 5200 l 6200 l Capacity, rounded 3000 l 4000 l 5000 l 6000 l 7000 l Weight (empty) 455 kg 490 kg 750 kg 850 kg 950 kg Hopper construction Poly Poly Poly Poly Poly Spreading width 1-12 m (may vary depending on material) Spinner size 500 mm 500 mm 500 mm 500 mm 500 mm Auger diameter (stainless steel) 150 mm 150 mm 150 mm 150 mm 150 mm Chain Conveyor width 300 mm 300 mm 300 mm 300 mm 300 mm Material Salt, sand, fIne gravel/ mixed (max 8 mm Ø with auger) Vehicle 4,5-18 ton trucks 4,5-18 ton trucks 4,5-18 ton trucks 4,5-18 ton trucks 4,5-18 ton trucks
LIQUID SYSTEM (optional)	MODEL 3000 AM/CM 4000 AM/CM 5000 CM 6000 CM 7000 CM Pre-wet, Spray volume 3-12 l/min 3-12 l/min 3-12 l/min 3-12 l/min 3-12 l/min Spraybar, Spray volume 5-25 l/min 5-25 l/min 5-25 l/min 5-25 l/min 5-25 l/min Pre-wet, Spraying width 1-8 m (together with spreading material) Spraybar, Spraying width 2-5 m 2-5 m 2-5 m 2-5 m 2-5 m Pre-wet, liquid tank capacity 1000 l 1000 l 1200 l 1200 l 1400 l Spraybar, liquid tank capacity 1000 – 2500 l * 1000 – 2500 l * 1200-3000* l 1200-3000* l
COMBI PLUS liquid option	MODEL 2600 3000/4000 AM/CM 5000/6000 CM 7000 CM Total hopper length with 1 additional tank 310 cm 365 cm 415 cm 485 cm Total hopper length with 2 additional tanks 370 cm 425 cm 475 cm 545 cm Total hopper length with 3 additional tanks 430 cm 485 cm – – Additional tank volume 1000 l/tank 1000 l/tank 1000 l/tank 1000 l/tank Additional tank weight (empty tank + leg stand extension) 175/325/475 kg 175/325/475 kg 175/325 kg 175/325 kg Additional tank width 160 cm 160 cm 160 cm 160 cm Additional tank height 130 cm 130 cm 130 cm 130 cm
