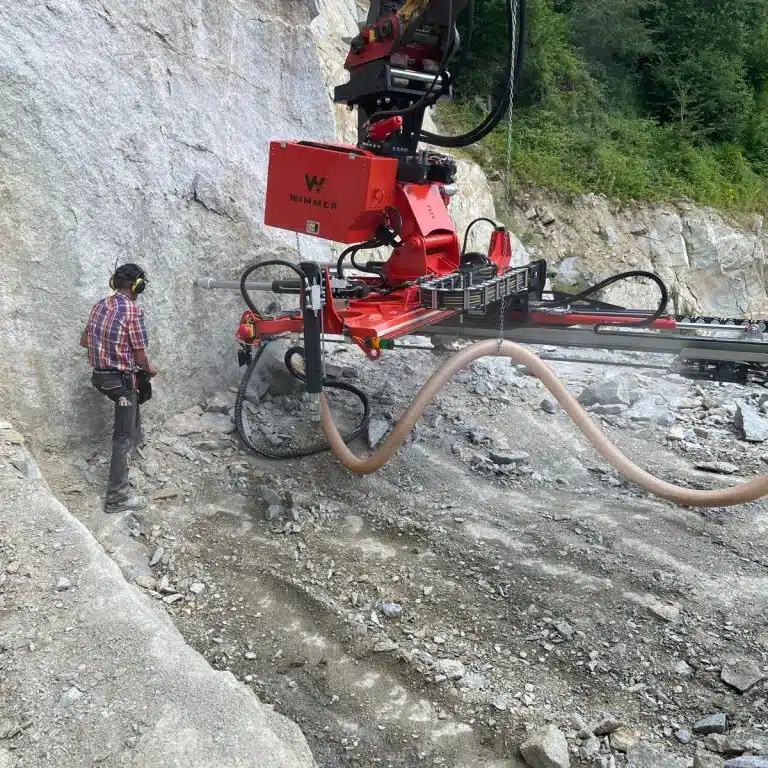

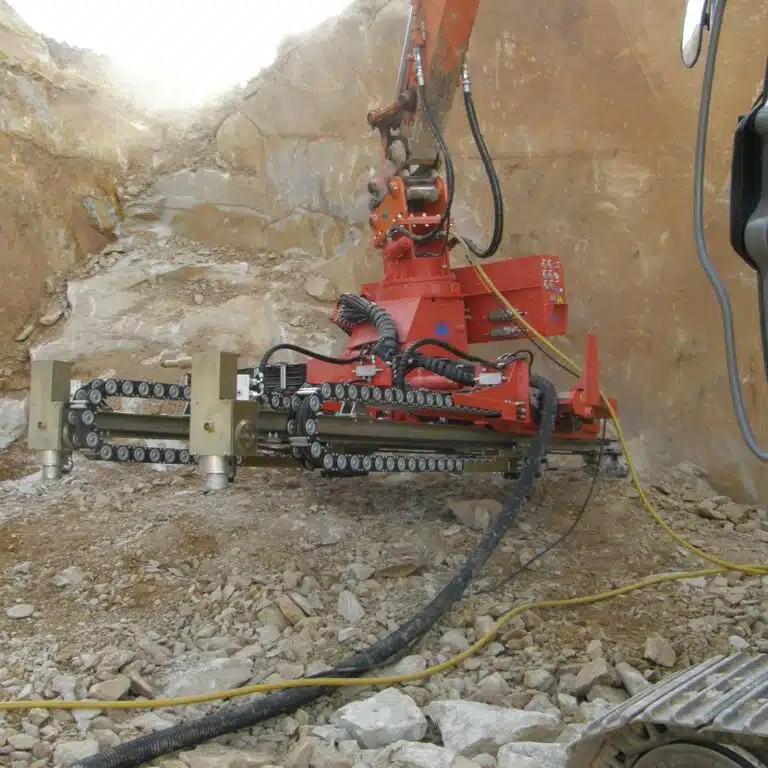

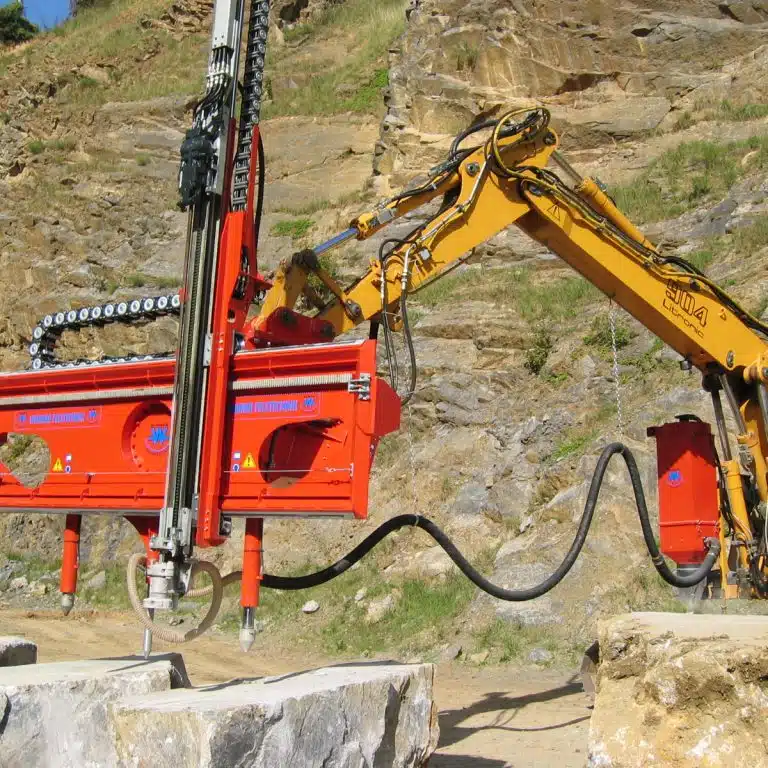

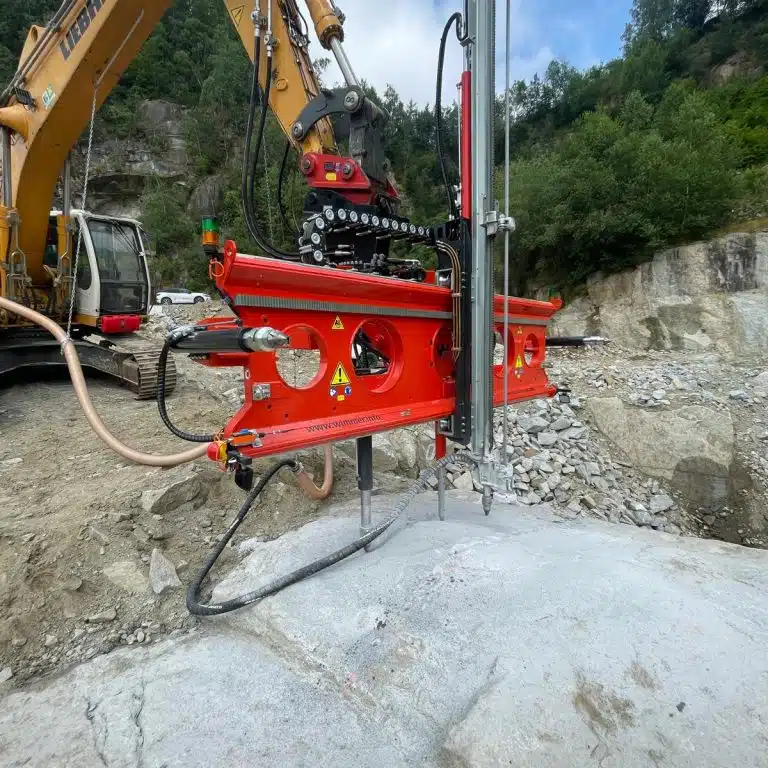

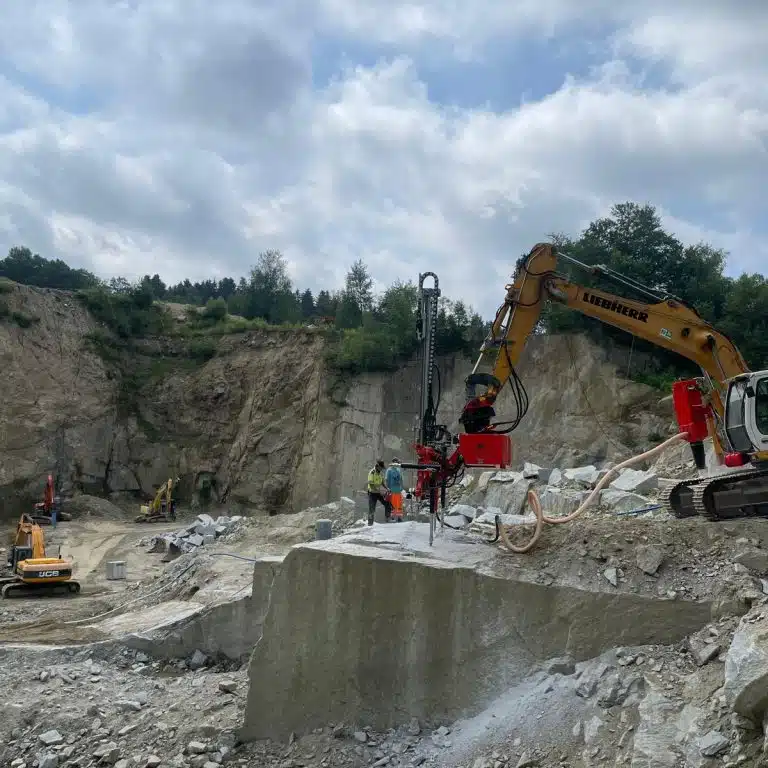

Special drilling rig with automatic splitting mechanism
Special drilling rig with automatic splitting mechanism
- 360° rotation, 95° forward/backward and 2 x 30° sideways swivel
- For vertical and horizontal row drilling radio remote control,
- all functions proportionally controlled (excavator optional)
- Automatic empty hammer, cavity safety device, anti-fixed drilling device and soft spot drilling
- standard options: PLC drilling automation and PLC remote maintenance (Drillmatic)
- Complete solutions incl. compressor and dust extraction incl. excavator superstructure
- Own power supply, no electr. connections required
- Wimmer Cockpit Drilling Data Analysis
Technical data
| Model | Hammer drill / max. ø (mm) | Useful bore depth (mm) | Useful bore width (mm) |
|---|---|---|---|
| Luna 1.100 | 1 x RD106 / 41 | 3600 | Standard 2900 |
| Luna 1.300 | 1 x HL 300 / 63 | 3355 | Standard 2900 |
| Luna 2.100 | 2 x RD106 / 41 | 3600 | Standard 2900 |
| Luna 2.300 | 2 x HL 300 / 63 | 3355 | Standard 2900 |
| Luna 3.100 | 3 x RD106 / 41 | 3600 | Standard 2900 |
