BTR reinforced police panel • Range C “Indication”

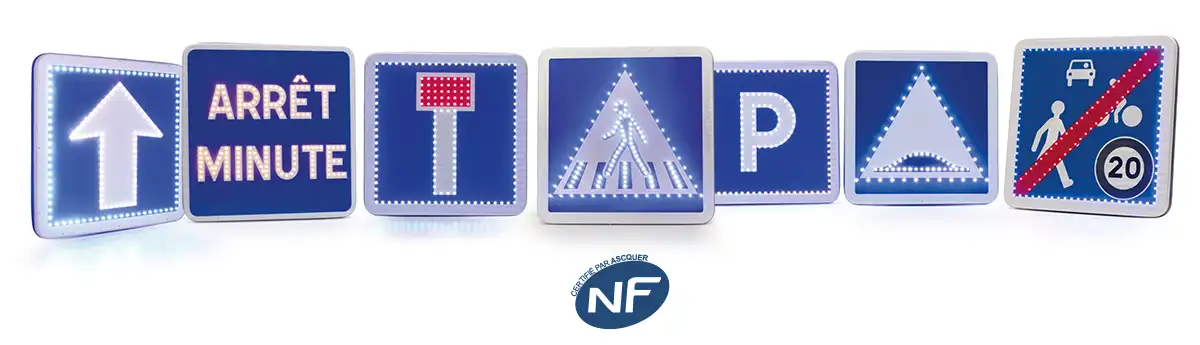

The C-range reinforced road sign is an ‘indication’ type sign. It conveys information or provides guidance, often related to a specific road setup.
It includes all the features of a certified road sign: a slim thickness of 50 mm, a 3M Class 2 adhesive film, and an aluminum composition with dropped, framed edges. This ensures it integrates harmoniously into its environment. By default, it comes in RAL 9006 (Silver Gray).
Our state-of-the-art embedded technology uses sorted LEDs to provide the best balance between light output and energy consumption. This guarantees a readable message in all circumstances while minimizing energy usage. This balance also helps extend the lifespan of our products, ensuring standard use for over 10 years.
- Thin box: 50 mm.
- Class 2 approved 3M film.
- LEDs sorted for better performance.
- Lifespan 100,000 hours.
- Compatible with our options.

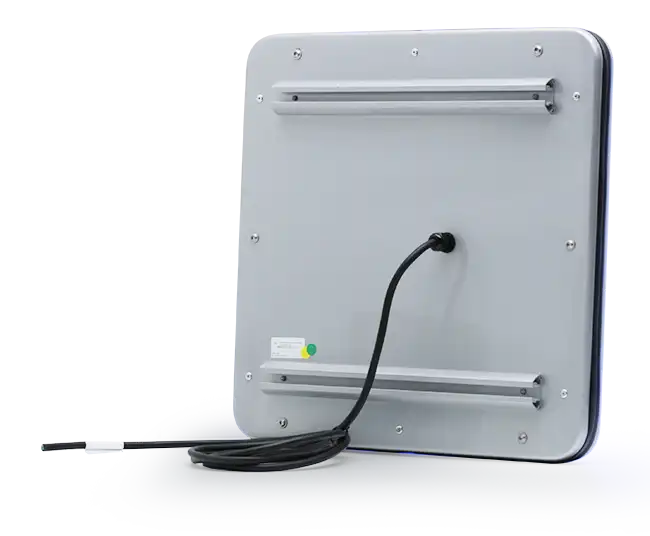

- Rail fixings on the back.
- Approved BTR sheet metal.
Technical Highlights – LED-Enhanced Road Sign
Slim 50 mm Housing
-
Designed for urban integration
-
Low-profile frame: only 50 mm thick
-
Default color: RAL 9006 (Silver Gray)
-
Custom color options available upon request
Unmatched Visibility in Any Environment
-
Adaptive brightness via smart power supply management
-
Enhanced readability in all weather and light conditions
-
Features:
-
Dual LED rows along the outer border
-
Color-reinforced central symbol optimized for maximum contrast
-
Certified Road Sign Construction
-
Genuine certified signage with:
-
Dropped edge
-
Framed border
-
-
Uses 3M Class 2 reflective adhesive, ensuring visibility and durability in compliance with industry standards
Sealed & Weatherproof
-
Electronics fully protected with IP68 rating
-
Elastomer seal ensures long-term resistance to water, dust, and environmental stress
| Feature | Details |
|---|---|
| Operating Mode | Dual flash |
| Power Supply | 230V / Solar / Public lighting connection |
| Protection Rating | IP68 (dust-tight and waterproof) |
| Dimensions | Square sizes: Small: 500 mm Normal: 700 mm Large: 900 mm Width: 50 mm |
| Options | Timer, radar (speed or motion), differential circuit breaker, custom features on request |
