Hilltip SprayStriker™ Hi-Flow truck sprayers

Hilltip SprayStriker™ Hi-Flow truck sprayers - Image 2

Hilltip SprayStriker™ Hi-Flow truck sprayers

Solutions That Work

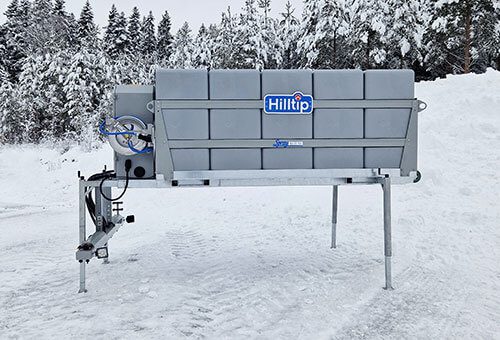

SprayStriker™ 3000-12500 L Hi-Flow Electric sprayer for trucks

Category: De-icing sprayers Tag: De-Icing

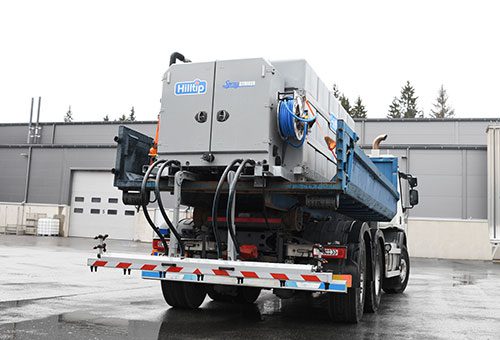

TRUCK-MOUNTED SPRAYER APPLICATIONS

Our NEW Hilltip SprayStriker™ HFE series truck sprayers are the largest in the SprayStriker™ product family. These truck-mounted brine sprayers have liquid tank capacities of 3,000-12,500 litres. Our fully 12V/24V electric-powered de-icing truck sprayers help contractors reduce salt usage and speed up the process.

The SprayStriker™ HFE series truck sprayers are equipped with StrikeSmart™ controllers, which feature GPS ground speed control and HTrack™ 2-way online tracking and control system as standard. Optionally STRIKESMART™ -PLUS and TEMPSTRIKER™ features weather forecast information and current air, road and dew point temperature information. The control system automatically suggests optimum spread rate for the driver, that will deliver world class ice control performance and road safety.

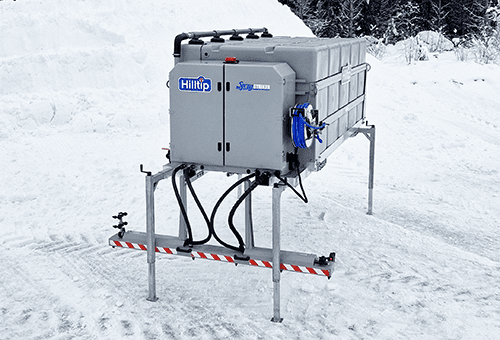

TRUCK SPRAYER DESIGN

The truck sprayers are designed for maximum liquid tank capacity and for use on municipal trucks and truck beds of different lengths. The durable and lightweight poly tanks are supported by a powder-coated stainless steel frame construction. The truck bed sprayers, dual hi-flow pumps, motors, valves, and CPU units are protected inside an easy-to-reach stainless steel cabinet.

Sprayer specifications and dimensions	MODEL 3000 4000 5000 6000 7000 8000 10 000 12 500 Height 150 cm 150 cm 150 cm 150 cm 150 cm 150 cm 150 cm 150 cm Width 161 cm 161 cm 161 cm 161 cm 161 cm 161 cm 198 cm 198 cm Length 240 cm 300 cm 360 cm 420 cm 480 cm 540 cm 565 cm 625 cm Tank volume 3000 l 4000 l 5000 l 6000 l 7000 l 8000 l 10 000 l 12 500 l Spray width 2,5-9 m 2,5-9 m 2,5-9 m 2,5-9 m 2,5-9 m 2,5-9 m 2,5-9 m 2,5-9 m Spray volume, 12V/24V 75/150 l/min 1 lane, Max speed @25ml/m², 12V/24V 42,5/85 km/h 3 lane Max speed @25ml/m², 12V/24V 15/30 km/h Weight (empty) 760 kg 780 kg 950 kg 1100 kg 1230 kg 1390 kg 1650 kg 1730 kg

Sprayer specifications and dimensions

MODEL 3000 4000 5000 6000 7000 8000 10 000 12 500
Height 150 cm 150 cm 150 cm 150 cm 150 cm 150 cm 150 cm 150 cm
Width 161 cm 161 cm 161 cm 161 cm 161 cm 161 cm 198 cm 198 cm
Length 240 cm 300 cm 360 cm 420 cm 480 cm 540 cm 565 cm 625 cm
Tank volume 3000 l 4000 l 5000 l 6000 l 7000 l 8000 l 10 000 l 12 500 l
Spray width 2,5-9 m 2,5-9 m 2,5-9 m 2,5-9 m 2,5-9 m 2,5-9 m 2,5-9 m 2,5-9 m
Spray volume, 12V/24V 75/150 l/min
1 lane, Max speed @25ml/m², 12V/24V 42,5/85 km/h
3 lane Max speed @25ml/m², 12V/24V 15/30 km/h
Weight (empty) 760 kg 780 kg 950 kg 1100 kg 1230 kg 1390 kg 1650 kg 1730 kg

Discover Our Advanced Tracking System

Enhance your operational efficiency with our optional Tracking System. Stay informed and in control with real-time data and seamless monitoring capabilities.

Click learn more about how our tracking solution can optimize your business.

Learn More
