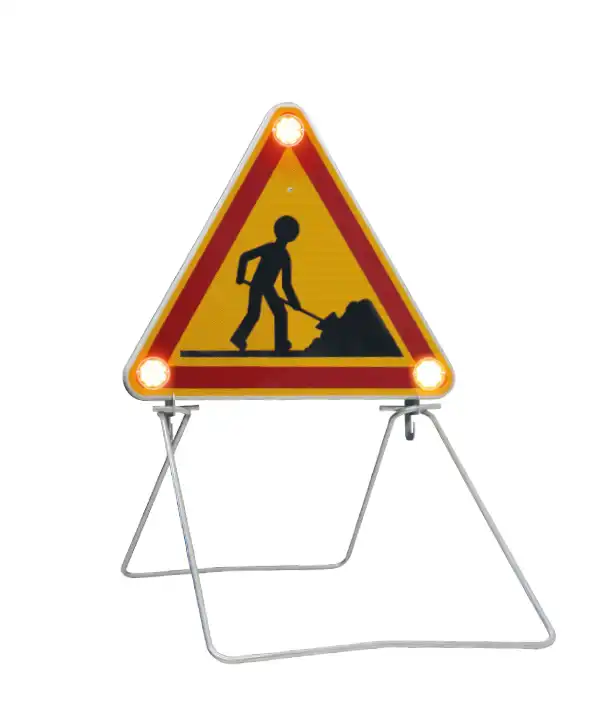

Lighting triangle 700 tri-flash Ø 70 with 12 LEDs • 2 batteries case power supply
This construction triangle allows the signaling of a road work zone, equipped with 3 high-power Ø130 optics, it effectively secures the supervision of a construction site by being clearly visible. Equipped with the best autonomy on the market, its operating cost is at its lowest. Delivered assembled and wired.
🚧 Triflash Panel – BTR Profile with Ø70 Optics & Dual Battery Box
🛠️ BTR Triangle Panel with Class 2 Reflective Adhesive
Made from anodized aluminum with a BTR profile, this triangle offers both rugged durability and modern aesthetics.
Finished with Class 2 adhesive—symbol choice based on your application.
💡 High-Performance Ø70 LED Optics
Fitted with three Ø70 mm optics, using advanced LEDs that provide high visibility and low energy consumption, extending service life in demanding site conditions.

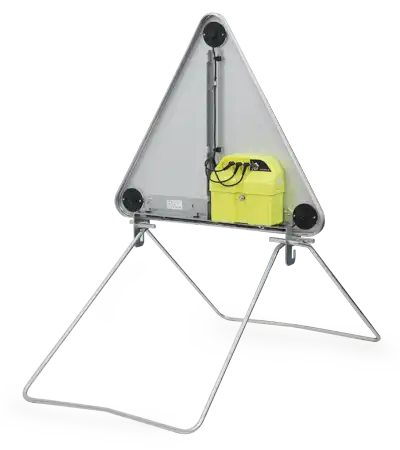

🔋 Dual Battery Control Box with Day/Night Sensor
Features a rear-mounted anti-shock ABS control box, resin-sealed electronics, and a day/night sensor.
Rapid Connect jack connectors allow for easy, tool-free operation and maintenance.

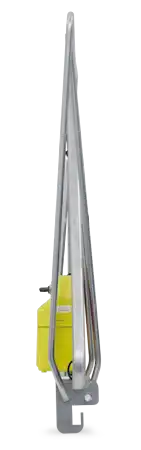

🧳 Folding Foot & Signage Support
Includes a folding galvanized foot and mounting lugs for optional 700 × 200 mm signage (text not included).
⚙️ Technical Specifications
| Feature | Details |
|---|---|
| Operating Mode | OFF / H24 / Night Trigger Double Flash |
| Power Supply | 2 × 6V 4R25 saline or alkaline batteries (not supplied) |
| Autonomy | Up to 1329 hours (2 × 45Ah batteries at 40 mA) |
| Protection | Optics: IP67 – waterproof
Housing: IP53 – dust/spray resistant |
| Weight | 7 kg |
| Dimensions | 661 × 119 × 775 mm (foot folded) |
| Options | Class 2 symbol, rechargeable accumulator |
