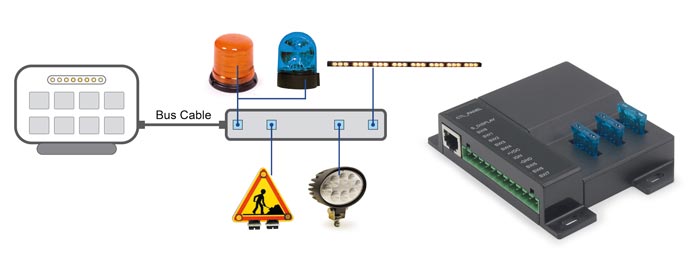

Mezzo 8 ECO panel + power module + cable
Mezzo 8 ECO is a control panel which is very compact, ergonomically designed and fully configurable. The keys can be customized and back-lit, depending on the equipment that is active.
Dual-Voltage Power Control Module – 12/24V | High-Capacity Output Management
This advanced dual-voltage power control unit is designed to manage complex electrical systems efficiently. Supporting both 12V and 24V inputs, it can control up to:
-
3 self-protected ON/OFF outputs
-
8 sequential (timed or progressive) outputs
It is ideally suited for installations involving high-power equipment, providing up to 10A per output across the main control channels.
Technical Specifications
-
Power Supply: 12V / 24V (dual voltage)
-
Maximum Current – Positive Outputs:
-
3 x 10A ports
-
5 x 0.2A ports
-
-
Maximum Current – Ramp Output: 2A
-
Output Type: Self-protected ON/OFF + Sequential (timed) outputs
-
Total Outputs: 11 (3 + 8)
Physical Characteristics
-
Enclosure Weight: 84g
-
Power Module Weight: 131g
-
Total Weight (with enclosure, cable, and mounting base): 461g
-
Dimensions:
-
Enclosure (L x W x H): 95 x 25 x 70 mm (without mounting base)
-
Power Module: 112 x 90 x 27 mm
-
Key Features
-
High-current output capability (10A)
-
Compact and lightweight modular design
-
Built-in short-circuit protection
-
Sequential logic-ready outputs for custom control schemes
-
Ideal for marine, industrial, automotive, and off-grid applications
