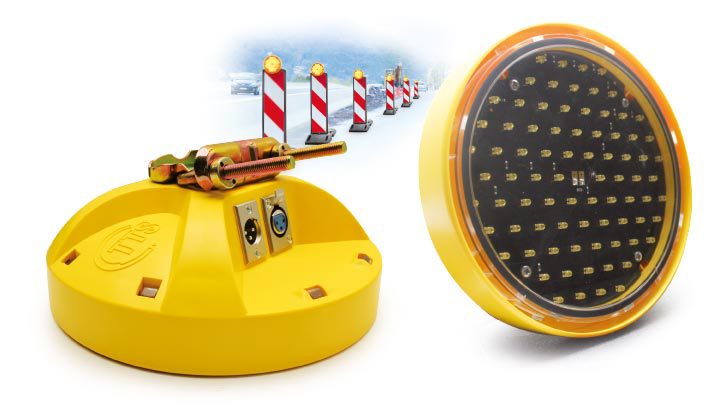

Optic Ø 200 with 80 LEDs • Scrolling • 12 V • Wired connection • with theft-prevention attachment
Solutions That Work
Self-synchronizing lamps via wired connection.
Ideal for signaling a change in traffic direction.
The scrolling burst is preceded by a double flash synchronized on all lenses.
Each optic connects behind the previous light.
🌐 Sequential LED Optics System – Curve Warning & Spatial Identification
🔒 Protected, High-Performance LEDs
-
Anti-UV polycarbonate lens
-
IP65-rated for dust and water resistance
💡 Low Consumption / High Visibility
-
100% LED optics
-
Optimized electronics for maximum autonomy and brightness
⚡ Easy Plug-and-Play Installation
-
Only the first optic connects to power
-
Daisy-chained via 15m XLR cables
-
Compatible with battery, mains, solar, or public lighting
🎯 Operating Mode – Dual Signal Logic
-
Synchronous flashing for spatial awareness
-
Sequential drag scrolling to trace the bend
-
Supports up to 15 optics per installation
⚙️ Technical Specifications
| Feature | Details |
|---|---|
| Operating Mode | Synchronous flash + scrolling drag effect |
| Power Supply | 12V battery / 230V/12V adapter / Solar / Public light |
| Autonomy | ~250 hrs (5 optics + 12V 75Ah battery) |
| Protection Rating | IP65 |
| Weight | 2 kg total (0.9 kg optic, 1.1 kg cable) |
| Dimensions | Ø 222 mm |
| Connectivity | 15 m XLR cables included |
