Single axle trailer 750 kg

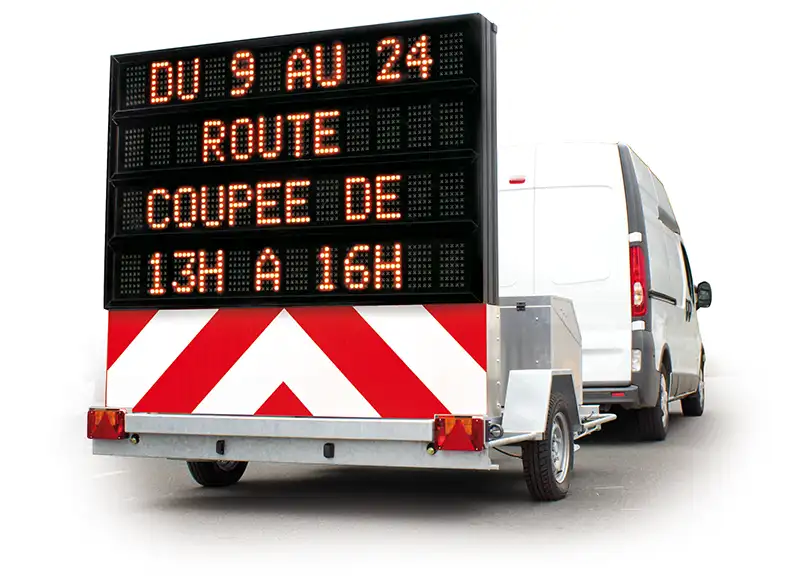

Technical Specifications – Trailer-Mounted VMS Display

Structure

• Chassis: Self-braking, single-axle (750 kg), total towable weight: 830 kg

• Material: Galvanised steel frame

• Stabilisation: Manual stabilisers

• Safety: Integrated parking brake and adjustable drawbar

Display System

• Configurable with 1 to 4 lines, each with 12 characters

• Character format: Hc200-4, 7×5 matrix, 3 yellow LEDs per pixel

• Enhanced visibility with Class 2 red and white chevrons

Control & Management

• Local Mode:

  • ALTO 4.3″ control panel

  • Encoder wheel or PC connection

• Remote Mode:

  • GSM, radio, and other wireless communication options

• Automatic brightness control based on ambient light

Programming

• Via laptop PC using provided software and connection cable

• Message updates through USB key or direct PC-to-trailer cable

Modular Features

• Optional accessories and upgrades:

  • Generator set

  • 12V battery charger

  • Electrically operated stabilisers

  • Inertial braking system

  • GSM modem

Power Supply

• Primary power: 12V batteries

• Additional options:

  • Battery charger

  • Mains lead reel

  • Optional generator set
