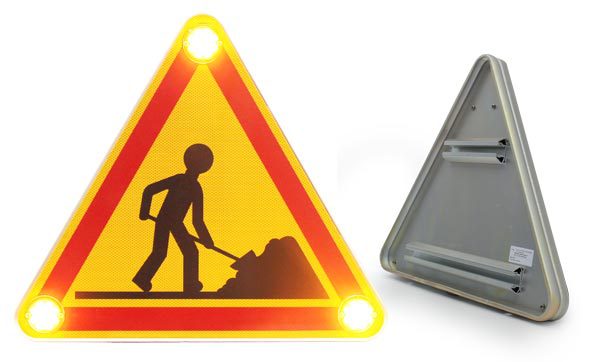

SINGLE-SIDED LEDs TRIANGLE 700 – class2
The anodized aluminum box is made up of two 700mm sheets assembled back to back.
On the front face is glued an adhesive AK5 in class 2 and three optics.
Rear fixing by double rails.
It is supplied with a 10 meter power cable.
The luminous element is composed of three extra flat optics of 72 mm in diameter. Each has 12 high intensity yellow LEDs and is protected by a magnifying lens.
The lifespan of a led is more than 100,000 hours.
The triangle is dual voltage, it can be supplied with 12 volts or 24 volts without changing the lights.
Dual-Voltage Illuminated Triangle – Anodized Aluminum with AK5 Class 2 Panel
This heavy-duty illuminated triangle is designed for professional use during road interventions or mobile operations. Constructed from anodized aluminum, it integrates powerful optics and regulatory signaling elements for maximum visibility and safety.
Key Features:
-
Durable Construction
Made from two 700 mm aluminum sheets, assembled back-to-back for structural rigidity and longevity. -
High-Visibility Front
The front face features AK5 Class 2 adhesive film and three high-power optics for optimal signaling performance. -
Rear Mounting System
Equipped with double rails for secure and adaptable rear fixation on various vehicles. -
Integrated Power Supply
Comes with a 10-meter power cable, ready for quick installation. -
Advanced LED Optics
Each 72 mm extra-flat optic contains 12 high-intensity yellow LEDs, protected by a magnifying lens for enhanced light diffusion.
– LED lifespan: Over 100,000 hours -
Dual Voltage Compatibility
Operates on 12 V or 24 V DC systems without requiring modifications to the lighting units.
| Technical specifications | Details |
|---|---|
| Operating Mode | Double flash, 90 flashes per minute |
| Power supply | 12 or 24-Volt |
| Autonomy | 210 mA |
| Protection | IP 44 |
| Weight | 4.1 Kg |
| Size (L x l x h) | 657 × 112 × 570 mm |
