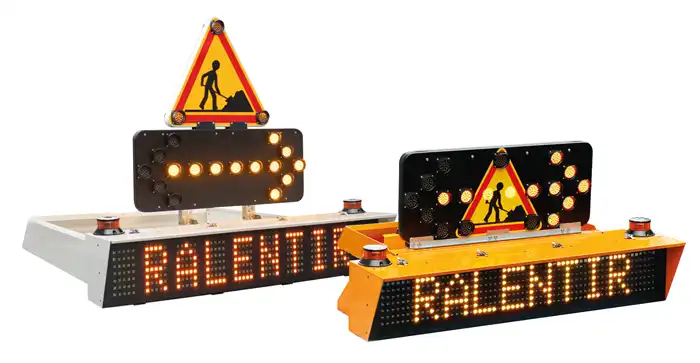

VMS + 16 optics Arrow

Solutions That Work

Our variable message signs with 16 optics arrow installed directly on-board vehicles are equipped with high light intensity LED displays.
Created to provide temporary mobile signaling on roads and motorways, they provide road users with information on traffic conditions.

Category: VMS vehicle - Triangle on-board range

Technical Specifications

VMS Display:
New-generation, energy-saving variable message signs available in sizes H160 mm, H200 mm, or H250 mm, using 3 to 4 LEDs per pixel, displaying 8 to 12 characters per line.
Brightness Control:
Automatic brightness adjustment using an integrated day/night sensor.
Double-Sided Triangle (500 – 700 mm):
- 500 mm version: Directly integrated on the boom fairing with 16 optics
- 700 mm version: Aluminum with rolled edges
- Class 2 reflective adhesive with selectable symbol
- Equipped with 6 optics Ø70 mm, each containing 30 LEDs
KR42-Type Arrow Board:
Contains 16 optics Ø70 mm, each with 30 LEDs, for directional signaling.
Lifting System:
Powered by an electric cylinder with an integrated limit switch for secure motion control.
Finish:
Available in the RAL color of your choice.
Control Unit:
Integrated latest-generation ALTO panel with USB key support for updates.
Optional Equipment (on request):
- Flashing beacon
- Spotlights
- Rearview camera
- Anemometer
- Other custom options available

Safety auxiliaries available as options :

A wide range of additional accessories allowing you to create equipment that fully meets your requirements: Beacons, spotlights, anemometer, rearview camera, siren etc.
Please contact us to configure your on-board equipment.
